Marsh Industries Ltd - Hydroil Bypass Separators

Bypass oil separator for low risk environment.

Designed and tested to BS EN 858 parts 1 and 2, Marsh Hydroil bypass separators are manufactured from virgin unfilled resin offering exceptional durability, impact resistance and are guaranteed to be watertight and of uniform thickness. These combined properties ensure that the full range of separators stand up to the most rigorous conditions during their service life.

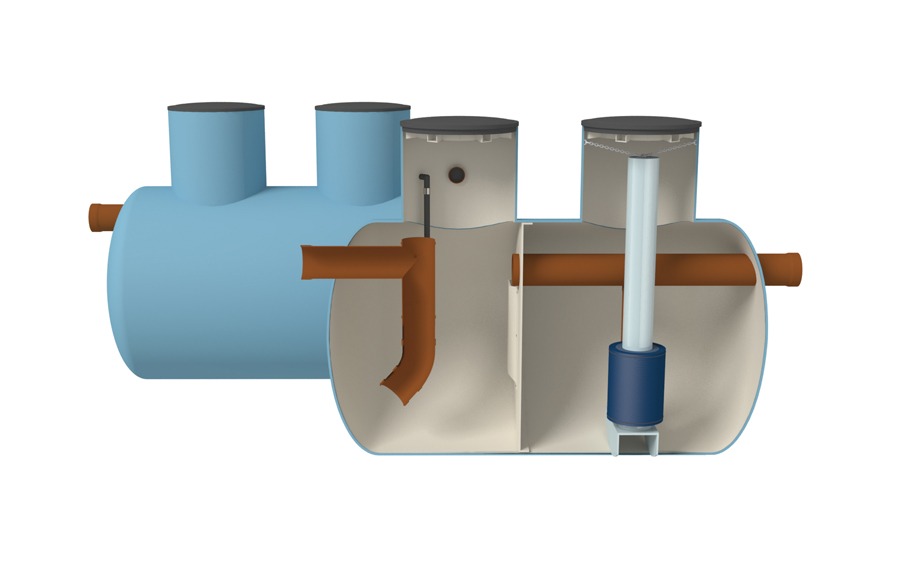

Internal working components, such as coalescing filters, weirs, oil skimmer plates, and their configurations offer the most modern and efficient oil/ water separation capability available to the market today.

A wide choice of inlet and outlet positions are available on the units - detailed requirements should be provided at time of order (standard inlet and outlet positions will otherwise be fitted).

Features and benefits:

Designed and tested to meet latest UK and European standards.
Corrosion resistant.
Tank shells guaranteed for 25 years with a design life for 50 years.
Heavy duty shells enable installation in all ground conditions.
Easy access turrets for maintenance and servicing (Turret guards optional).
Various alarm types available (Required by EN 585-1).
Variable invert depths and inlet/outlet configurations to suit individual sit conditions.
Vented turrets dissipate excessive fumes and vapours.
Marsh Hydroil bypass separators are designed to treat 10% of peak flow.

Product Application

For use in a low risk environment where there is no requirement to provide full treatment for the flow.

Typical applications:
